Outdoor Explosion Proof and Waterproof Junction Box

Name: Outdoor Explosion Proof and Waterproof Junction Box
Brand: YOMIN
Price: 2.85 USD

China Outdoor Explosion Proof and Waterproof Junction Box wholesale

Place of Origin : Zhejiang, China

Brand Name : YOMIN

Model Number : YMFS-1

Protection Level : IP68, IP68

Size : 150x35x31

Material : EPDM, PP or PE

Type : Junction Box

Product Name : Gel Filled Junction Box

Color : white or transparent

Work life : At least 10 years

Service : OEM/ODM/Customized

Function : Dustproof

Packaging Details : Inner packing transparent plastic bags,outer packing export cartons.

Port : NINGBO

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 10 Pieces

Price : $2.85/Pieces >=10 Pieces

Contact Now

Outdoor Explosion Proof and Waterproof Junction Box

Product features

Shockproof and impervious to most chemicals
Suitable for voltages up to 1KV
Sizes range from 0.75mm to 400mm
Suitable for single and multicore polymeric and paper cables, both stranded and solid copper/aluminium conductors
Performance tested to BS7888/HD623

Product Specification

Type	Maximum cable outer diameter		Maximum cable cross section		Product size	Filling weight
	Main circuit	Branch circuit	Main circuit	Branch circuit	Product size	Filling weight
	mm	mm	mm²	mm²	mm	g
YMFS-1	15	15	4x1.5-6	4x1.5-4	175x75x40	160
YMFS-2	29	22	4x16-25(35)	4x6-16	175x110x76	600
YMFS-3	29	22	4x16-25(35)	4x6-16	300x110x76	1100
YMFS-4	35	25	4x35-70(95)	4x6-25	400x125x100	2500
YMFS-5	55	38	4x95-150	4x6-70	510x160x120	5000

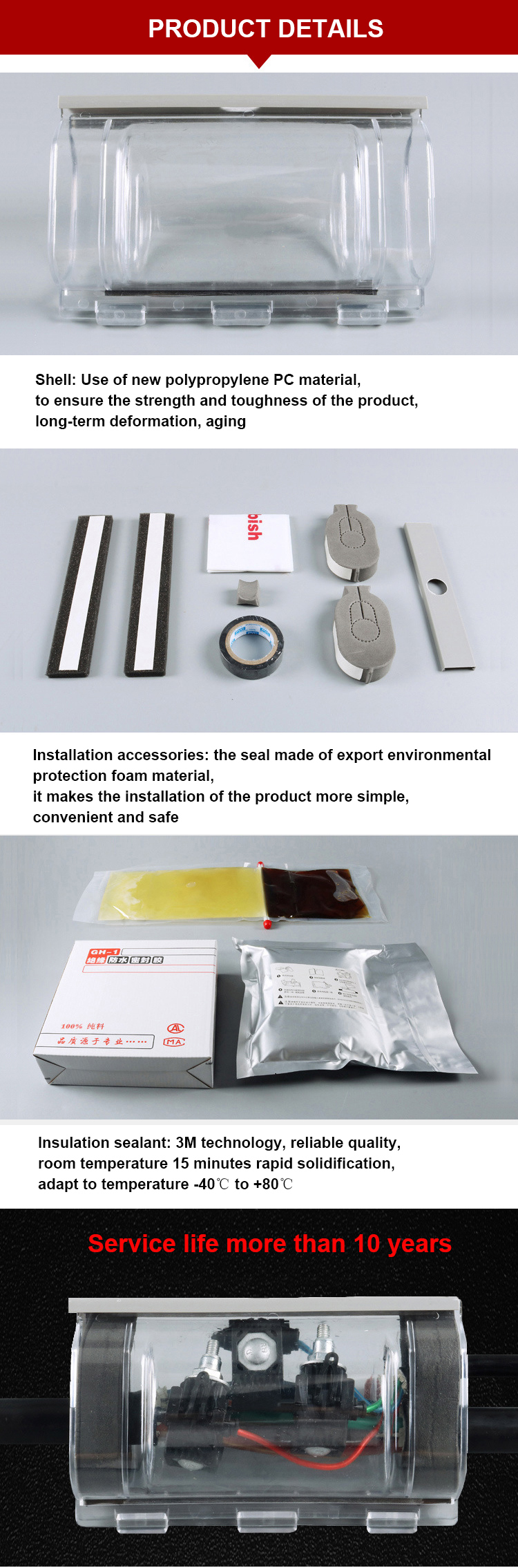

Product display

Outdoor Explosion Proof and Waterproof Junction Box Images
